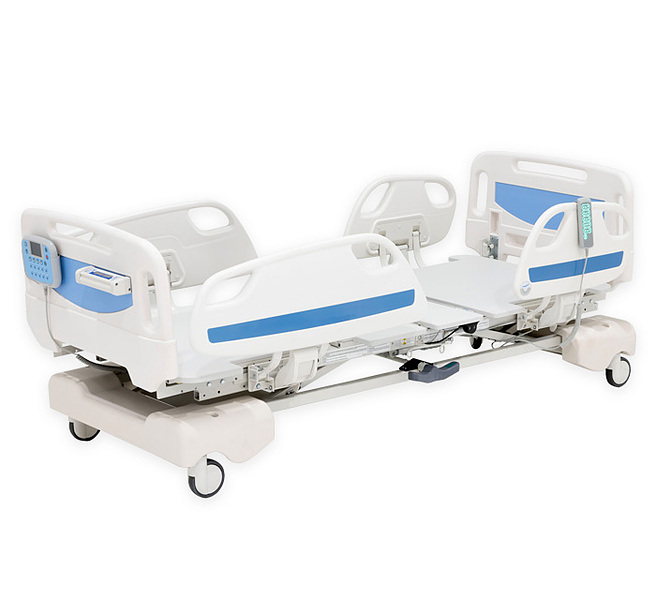

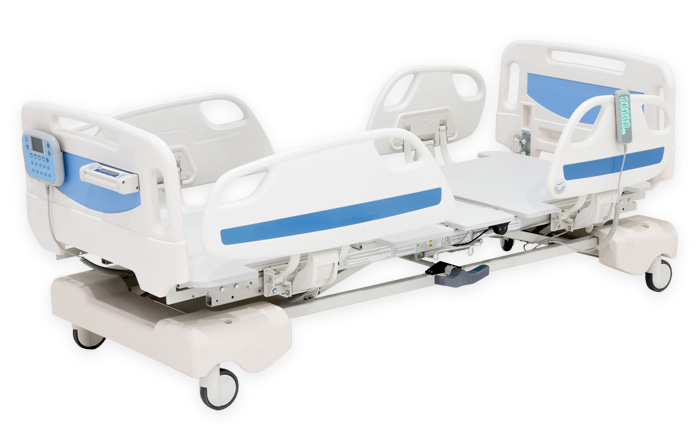

Introducing the NOA Hospital Platinum SC Plus Bed
NOA Medical, through our new NOA Hospital Division, introduces our newest product line for the acute care market, our NOA Hospital Bed Series. The NOA Hospital Bed Series offers you three specific models to best fit your clinical and patient needs, while providing you with a combination of our standard and premium features, and price points to best meet your overall facility requirements. Our top of the line Platinum SC Plus Hospital Bed provides you with all of our standard features plus our premium bed package which includes a digital nurse panel with real time information and our In Bed Scale System. Our quality of product, progressive design and aggressive price makes our NOA Hospital Bed Series one of the best values on the market.
- Standard Features
Standard Features
- High impact quick release head and footboards
- One hand release, dropdown side rails
- Drainage hooks located on both sides of bed frame
- Self Leveling Motors
- Central and Directional Locking System with 5" Casters
- Transport Handles for ease of transporting bed and patient
- Caster Base Covers
- 600 lb. Safe Working Load
- 4 Year Warranty on Electronics
- 15 Year Warranty on Decks & Frame Welds
- Meets IEC 60601-2-52
Electronic Features
- Patented in Bed Scale with Digital Readout - Watch Demo Video Below!
- Scale never needs calibration
- One Button CPR Quick Release Head Deck
- Digital nurse panel with real time readouts
- Bed Exit Alarm with Multiple Zones that ties into the Nurse Call System
- Patient hand pendant
- Under Bed Lighting
- Battery Backup
Controls
- Handset - 10 Button Backlit, Non-locking
- Head, Foot, Comfort Chair, Elevation, Trendelenburg, Under Bed Light
- Y-Cable (handset plugs into either side of bed)
- Nurse Panel
- All Handset Features Plus Angle and Height Indicators, CPR Button, Scale Readout
- Scale Control and Readout
- Optional Features
Optional Features
- Side Rail Controls for Clinician ease of use

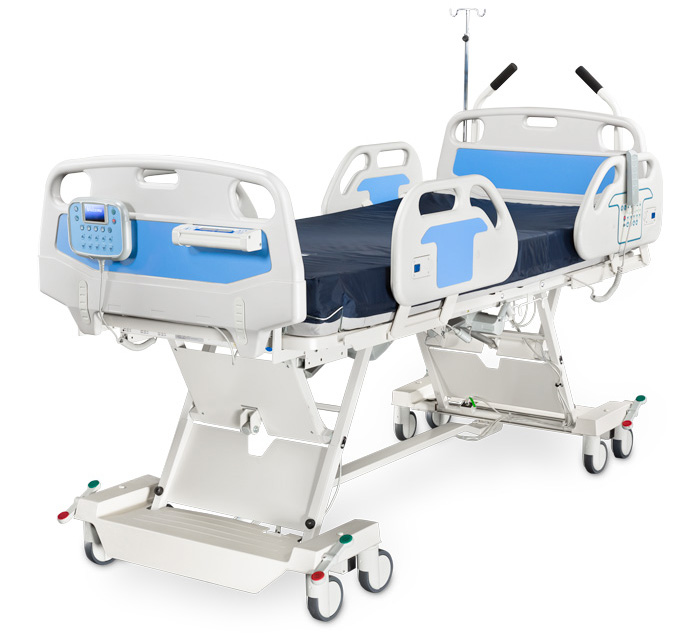

- Pressure Redistribution Foam Mattress
- Free Standing Trapeze
- Specifications
Specifications
Overall Width (Includes Side Rails) 39.5" Overall Length (Includes Head & Footboards) 86" Patient Surface 34.5" x 80" Deck Height Range 17" - 32.5" Safe Working Load 600 lbs. Max & Reverse Trendelenburg 14° Max Back Angle 70° Max Hip-Knee Angle 35° Scale System Accuracy +/- 1% of patient weight Weigh in any Position Yes Scale Repeatability 2% of patient weight - Downloads
- Product Part Numbers
Product Part Numbers
Product Description Product Part Number Platinum SC Plus Hospital Bed 35" x 80" 1055029GRY
Hospital Platinum SC Plus Photo Gallery
